What Exactly Is a Halbach Magnet?

Definition

A Halbach array is a special arrangement of permanent magnets that strengthens the magnetic field on one side while suppressing it on the other. Invented by physicist Klaus Halbach in the 1980s, it enables elegant field shaping with passive components.

  • Field reinforced on the “active” side
  • Field minimized on the “back” side
  • No external power required

How It Works

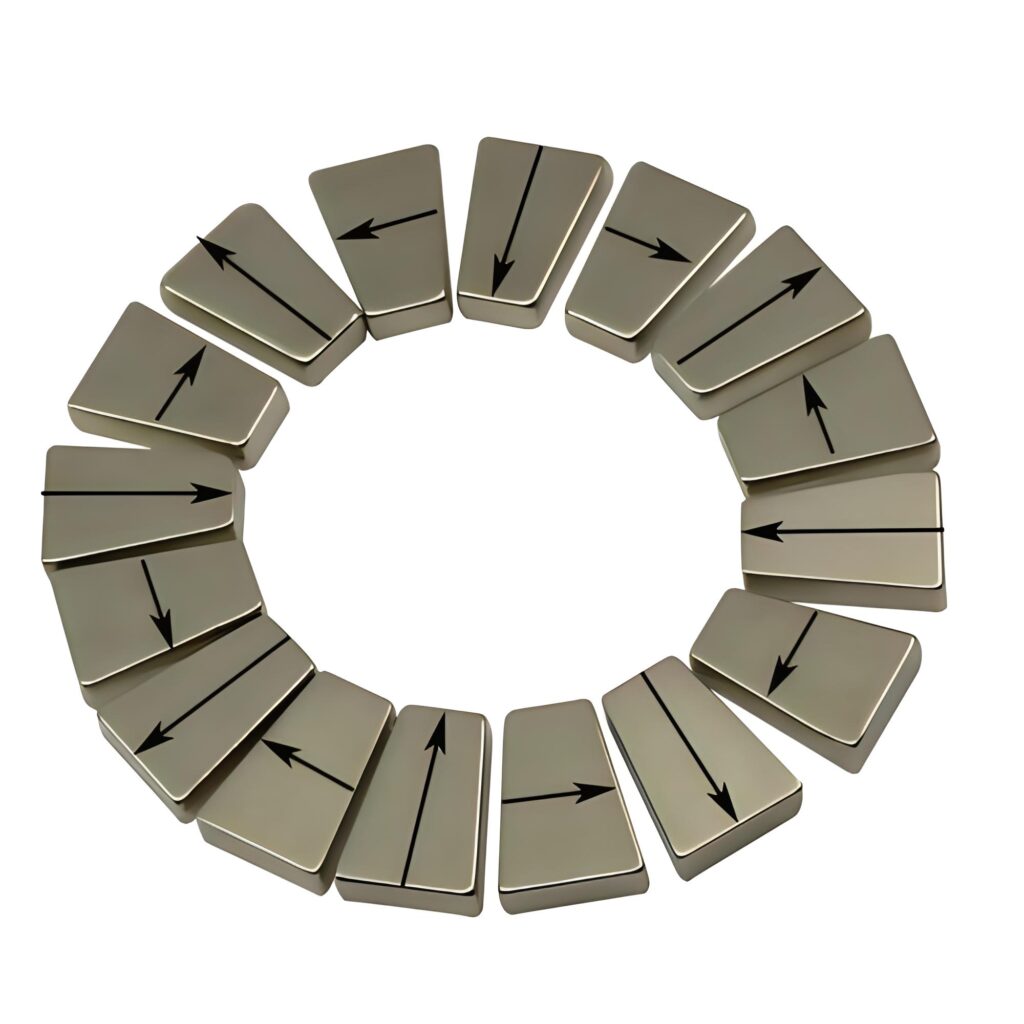

Magnets are placed at rotating angles (phase-shifted magnetization vectors). The rotation causes constructive interference of flux on one side and destructive interference on the other.

  • Compact, efficient, low stray field
  • High field where needed; reduced interference elsewhere
  • Ideal for multipole and segmented ring structures

The Ingenious Design and Its Benefits

Design Patterns

  • Linear arrays for conveyor/separation and sensors
  • Arc/ring arrays for high-performance motors & generators
  • Custom pole counts for tailored torque ripple & cogging

Key Advantages

  • Energy-efficient: passive field shaping, no coils required
  • Clean integration: strong stabilizing forces, low leakage
  • Scalable: works from compact devices to large industrial systems

Example: Maglev systems exploit strong lift/stability without continuous electrical excitation in the magnet structure.

Diverse Applications That Might Surprise You
Brushless DC / PMSM motors
EV traction & drones
Particle accelerators
Maglev & transport
Wind turbines
MRI & imaging
Magnetic separation
Precision sensors

From everyday devices to advanced research tools, Halbach arrays deliver uniform fields, high force density, and reduced stray fields, unlocking performance that conventional layouts struggle to match.

Optimizing Magnetic Solutions for Your Needs

Engineering Inputs

  • Target field profile, air-gap, torque/force requirements
  • Temperature range & demagnetization safety margin
  • Form factor: ring/segment/linear; pole count & pitch
  • Material grade (NdFeB / SmCo), coating, corrosion risk

Deliverables

  • Electromagnetic concept & pole scheme (axial/radial/multipole)
  • DFM-ready drawings & tolerance stack-up
  • Prototype → validation tests (flux map, pull force, loss)
  • Costing, yield & assembly method (adhesive/fixture)
Send your drawing (STEP/DWG/PDF), duty cycle & environment. We’ll return grade, magnetization scheme, coating, and a DFM-ready quote.

Looking Ahead: The Future Shaped by Magnetic Innovation

Roadmap

Materials science and advanced manufacturing continue to push Halbach arrays forward — improving temperature stability, remanence, coercivity, and integration methods. As sustainability targets tighten, recycled REE magnets and optimized array topologies will play a major role across mobility, energy, and healthcare.

Efficiency isn’t accidental — it’s engineered. Harnessing well-shaped magnetic fields is how we translate invisible physics into tangible performance.
